SLEE Semi-Automatic Precision Microtome CUT 5062

Description

Semi-Automatic Precision Microtome CUT 5062

The semi-automatic precision microtome CUT 5062 is designed for all applications in routine, research or industry. Years of experience and customer input have contributed to create one of the best semi-automatic microtomes available.

The CUT 5062 combines highest precision with user friendliness as well as best comfort. Like all Slee microtomes, the CUT 5062 comes with a complete set of standard components which can be individually adapted to customer’s needs, ready to be used out of the box.

Design & Manufacturing Made in Germany

Highlights

• Ergonomic design
• Spacious, integrated section waste tray
• Wide range of accessories
• Intuitive control panel
• Hand wheel lock in any position
• Blade holder levers changeable (for left-handed users)
• 2 operation modes (standard and rocking mode)
• Motorized trimming up to 750 μm, programmable
• Motorized advance / return of specimen (2 speeds)
• Display of section counter, section sum and remaining travel
• Tip function for precise specimen approach
• 2 specimen feed memory positions
• Variable retraction

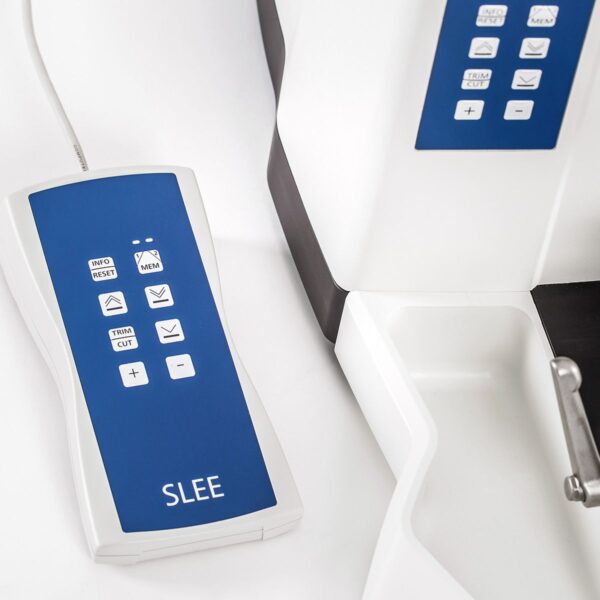

• External control panel (optional)
• Second hand wheel brake (optional)

Standard Components

• Specimen Orientation
• Universal Cassette Clamp, orientable (alternatively: standard specimen clamp, orientable)
• Disposable Blade Holder (alternatively: standard knife holder)
• Section Waste Tray
• Disposable Blades, Low Profile (1 box, 50 pcs.)
• Dust Cover
• Mains Cable
• Manual

Optional Accessories

• Aquatec System
• MTR Bench Top Quick Freezing Unit
• Magnifier with Illumination (dimmable)
• External Control Panel CUT 5062
• TC65 Disposable Blade Holder (for tungsten carbide blades)
• Tungsten Carbide Blade (1 pcs.)
• Disposable Blades
• Glass Knife Holder (for triangle glass knives)
• Segment Arc incl. Universal Sample Holder (for glass knife holder application)
• Super Mega Cassette Clamp, Orientable
• Super Mega Cassette Clamp, Fixed
• Standard Specimen Clamp, Orientable
• Standard Specimen Clamp, Fixed
• Foil Clamp (use in standard specimen clamp)
• Standard Knife Holder
• Knife Holder Basis Unit
• Prism (set)
• Round Specimen Holders (different diameters)

Specifications

• Brand: SLEE
• Type: Semi-Automatic Precision Microtome CUT 5062
• Operating Temperature Range: +10 to +35°C
• Operating Humidity: max. rel. 80% non-condensing
• Storage Temperature Range: +5 to +55°C
• Storage Humidity: max. rel. 80% non-condensing
• Section Thickness Setting Range: 0.5 to 100 μm
• Section Thickness Selection: 0.5 to 2 μm in 0.5-μm steps, 2 to 20 μm in 1-μm steps, 20 to 50 μm in 2-μm steps, 50 to 100 μm in 5-μm steps
• Trimming Thickness: 0.5 to 750 μm, 0.5 to 2 μm in 0.5-μm steps,  2 to 20 μm in 1-μm steps, 20 to 50 μm in 2-μm steps, 50 to 150 μm in 5-μm steps, 150 to 750 μm in 10-μm steps
• Specimen Feed: 28 mm (step motor)
• Specimen Feed Speed SLOW: 75 / 150 / 300 / 600 μm / s
• Specimen Feed Speed: 3,000 μm / s
• Specimen Feed Memory: 2 positions programmable
• Vertical Specimen Stroke: 72 mm
• Maximum Specimen Size: 50 x 50 mm
• Knife Holder (north-south axis): 35 mm
• Specimen Retraction: 0 to 200 μm, selectable
• Specimen Orientation: 8° (horizontal), 8° (vertical), 360° (z-axis)

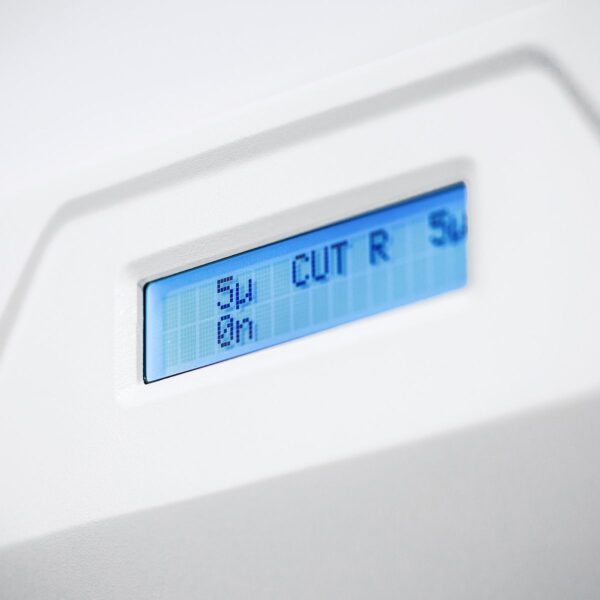

• Information Display: Number of Sections / Section-Sum and Remaining Travel Distance
• Dimensions (W x D x H): 520 x 600 x 325 mm
• Weight (w/o Accessories): 33 kg
• Quantity: Each

If you are looking to buy a great quality microtome, contact us today for a quote.
