Easy Scan Pro 6

Description

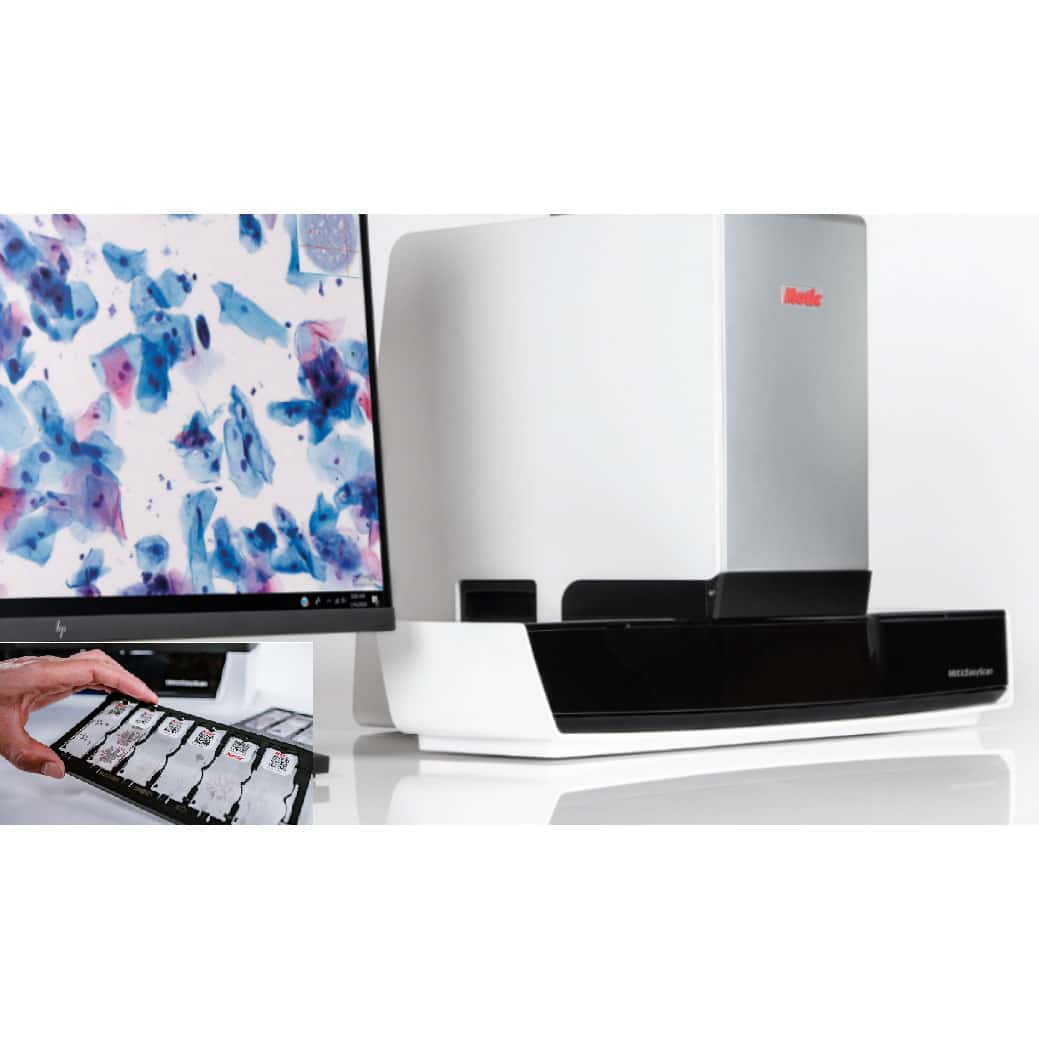

The Motic Easy Scan Pro 6 is the perfect gateway scanner for labs, startups, or medical organizations entering digital pathology. Compact, affordable, and easy to use, it scans and uploads up to 6 high-quality digital slides to your slide management server in a single click — making it an ideal first step into whole-slide imaging.

Key Features

6-Slide Batch Capacity
Load up to 6 standard slides (76 ± 1 mm × 26 ± 1 mm) at once. The scanner automatically images and uploads each slide, freeing your team to focus on other work while scanning runs in the background.

High-NA Plan Apochromatic Objective
A specially designed 20x/0.75 NA Plan Apochromatic objective maximizes color fidelity and resolution, delivering image detail equivalent to a high-power 40x lens.

Choice of Camera Resolution
Available with either a 5-megapixel high-speed sensor or a 12-megapixel digital camera, so labs can choose the configuration that best fits their imaging needs and budget.

Fast Scan Times
In standard mode with the 20x objective, a full 15mm × 15mm tissue sample scans in as little as 160 seconds — with resolution down to 0.26 µm/pixel at 40x and 0.52 µm/pixel at 20x.

Hardware Autofocus with Rapid Tissue Detection
A dedicated focusing camera enables Motic’s hardware autofocus design, eliminating the need for lengthy pre-mapping. Automatic tissue detection can be overridden interactively, and a High Precision Autofocus mode is available for wavy or uneven samples.

Multiple Scan Modes
From Z-Stack imaging for thick samples to High Precision mode for irregular slides, the Easy Scan Pro 6 adapts to a wide range of specimen types.

Optional FS-Live Telepathology
Add Motic’s FS-Live software suite to enable real-time remote viewing and continuous auto-focus — ideal for frozen sections, cytology, ROSE (rapid on-site evaluation), and FNA adequacy assessments. Pathologists can operate the scanner remotely and provide a diagnosis without travel time, with support for browser-based viewing and mobile consultation via iPad, iPhone, and other devices.

All-in-One Touchscreen Workstation
Includes a 23.8″ 4K LED all-in-one touchscreen PC running Windows 10 Professional 64-bit, with 16GB memory and 128GB SSD plus 1TB SATA storage — everything needed to operate, view, and manage scans out of the box.

Included Software
Comes standard with DSAssistant and EasyScanner software for image adjustment, annotation, measurement, encryption, comparison, and export.

Technical Specifications

Who Is the Easy Scan Pro 6 For?

The Easy Scan Pro 6 is well-suited for:

• Small to mid-size labs taking their first step into digital pathology
• Startups and new practices that need an affordable, reliable entry-level scanner
• Hospitals and clinics wanting FS-Live telepathology for frozen section and ROSE consultations
• Educational institutions sharing high-quality digitized slides for remote teaching

Why Choose Mercedes Scientific?

Every Motic Easy Scan Pro 6 purchased through Mercedes Scientific Histology Equipment includes a 1-Year Parts and Labor Warranty, backed by a team experienced in histology equipment sales and service. Contact us today to request a quote, ask about free equipment options, or schedule a demonstration.
