SLEE MEV+ Routine Cryostat
The MEV cryostat features a modern rotary microtome, space-saving design, a large stainless steel cryochamber, a 24 position freezing bar with cooling temperature down to -35 °C.
Condition | New |
---|---|
Manufacturer | Slee |
Model | MEVplus |
Warranty | 2 Year Warranty: 1 Year Labor, 2nd Year Parts Only |
Description
MEV+ Routine Cryostat
The model MEV features convenient operation and a modern rotary microtome. The space-saving design has a large stainless steel cryochamber, an effective freezing bar with 24 positions and a cryochamber cooling temperature down to -35 °C.
Many years of experience in this market and regular feedback from customers enable us to provide the MEV + cryostat, covering the most common requirements most frequently needed in routine histology. The device is equipped with UV-C surface disinfection, 2 quick freezing positions and object cooling.
Design & Manufacturing Made in Germany
Highlights
- Modern rotary microtome with high-precision automatic feed
- Integrated section counter
- Large anti-roll plate
- Intuitive control
- Automatic defrost

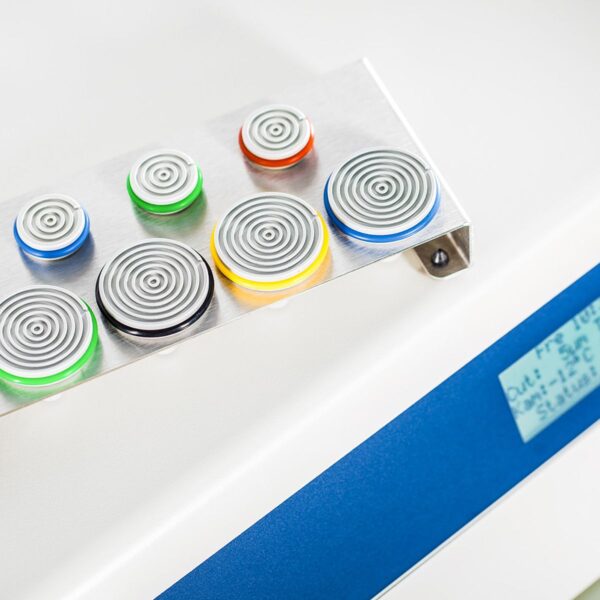

- 24 freezing positions
- Extraction system (optional) (MEV only)
- 2 quick freezing positions
- UV-C disinfection
- Object cooling
Standard Components
- Anti-Roll Plate

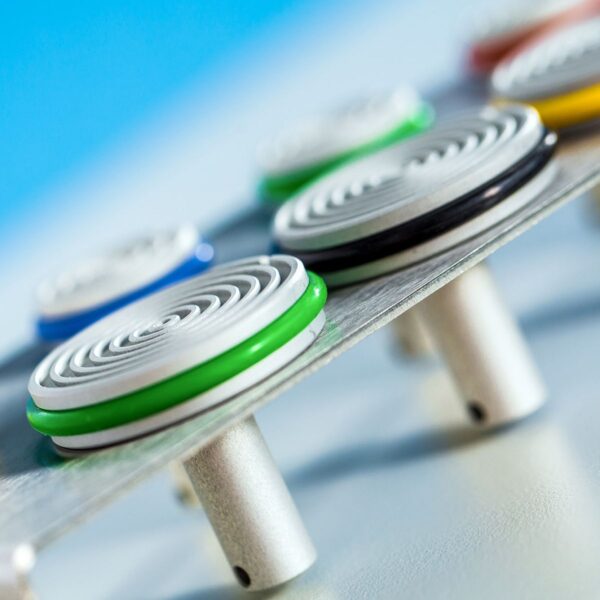

- Specimen Holders (5 x Ø 22 mm; 5 x Ø 35 mm)
- Section Counter
- Disposable Blade Holder (alternatively: standard knife holder)
- Heat Extractor (1 pcs.)
- Rack for Specimen Holders (stainless steel)
- Disposable Blades (box with 50 pcs.)
- CryoGlue Embedding Medium (125 mL)
- Cryostat Low Temperature Oil (50 mL)
- Set of Allen Keys
- Clear-Cut Brush
- Mains Cable
- Manual
Options
- 2 Quick Freezing Positions
- UV-C Disinfection 230 V, 50/60 Hz
- UV-C Disinfection 115 V, 60 Hz
- Object Cooling 230 V, 50/60 Hz
- Object Cooling 115 V, 60 Hz
- Debris Extraction System 230 V, 50/60 Hz (MEV only)
- Debris Extraction System 115 V, 60 Hz (MEV only)
Optional Accessories
- Standard Knife Holder
- Specimen Holder (Ø 22 mm; 5 pcs.)
- Specimen Holder (Ø 28 mm; 5 pcs.)
- Specimen Holder (Ø 35 mm; 5 pcs.)
- Specimen Holder (Ø 50 mm; 5 pcs.)
- Rack for Specimen Holders (stainless steel)
- Cork Plates (Ø 20 mm; 100 pcs.)
- CryoGlue Embedding Medium (4 x 125 mL)
- Clear-Cut Brush
- Anti-Roll Plate (disposable blade holder, plastic)
- Anti-Roll Plate (standard knife holder, plastic)
- Steel Knife (16 cm-C-profile, 1 pcs.)
- Disposable Blades
- Ergosit Laboratory Chair
Specifications
- Brand: SLEE
- Type: MEV+ Routine Cryostat
- Cryochamber Temperature: 0°C down to -35°C
- Section Thickness Range: 0.5 to 100 μm
- Section Thickness Settings: 0.5 to 2 µm in 0.5-μm-steps, 2 to 20 µm in 1-μm-steps, 20 to 50 µm in 2-μm-steps, 50 to 100 µm in 5-μm-steps
- Trim Thickness Settings: 0.5 to 750 µm, 0.5 to 2 µm in 0.5-μm-steps, 2 to 20 µm in 1-μm-steps, 20 to 50 µm in 2-μm-steps, 50 to 150 µm in 5-μm-steps, 150 to 750 µm in 10-μm-steps
- Horizontal Advance: 28 mm
- Vertical Stroke: 58 mm
- Specimen Retraction: 0 to 200 µm, selectable
- Specimen Orientation: 8° (horizontal), 8° (vertical), 360° (z axis)
- Electrical Parameters: 115 V, 60 Hz | 230 V, 50/60 Hz
- Dimensions (W x D x H) 680 x 760 x 1.110 mm (MEV), 750 x 760 x 1.100 mm (MEV + and all devices with object cooling option)
- Weight (w/o Accessories): 127 kg (MEV), 154 kg (MEV +)
- Quantity: Each
If you are looking to buy a great quality cryostat, contact us today for a quote.
