HistoCore PELORIS 3 Premium Tissue Processing System

Description

HistoCore PELORIS 3 Premium Tissue Processing System

Foundation for Success

The HistoCore PELORIS 3 combines with world leading processing times, unmatched protocol flexibility, an intuitive design and advanced safety features protecting both your laboratory and patient samples, The HistoCore PELORIS 3 is the foundation for high-quality results; every time.

Your Schedule, Your Way

Load and unload cassettes on your schedule, not the instrument’s. The unique dual-retort design, short cycle times, and flexible protocols give you the flexibility to establish and adapt a workflow to meet the demands of your laboratory every day. Urgent biopsies coming in? A validated 1-hour rapid protocol has your back. Breast samples ready for diagnosis within the same day? No problem, thanks to an optimized 5 hours fatty tissue protocol.

High-Quality Results, Every Time

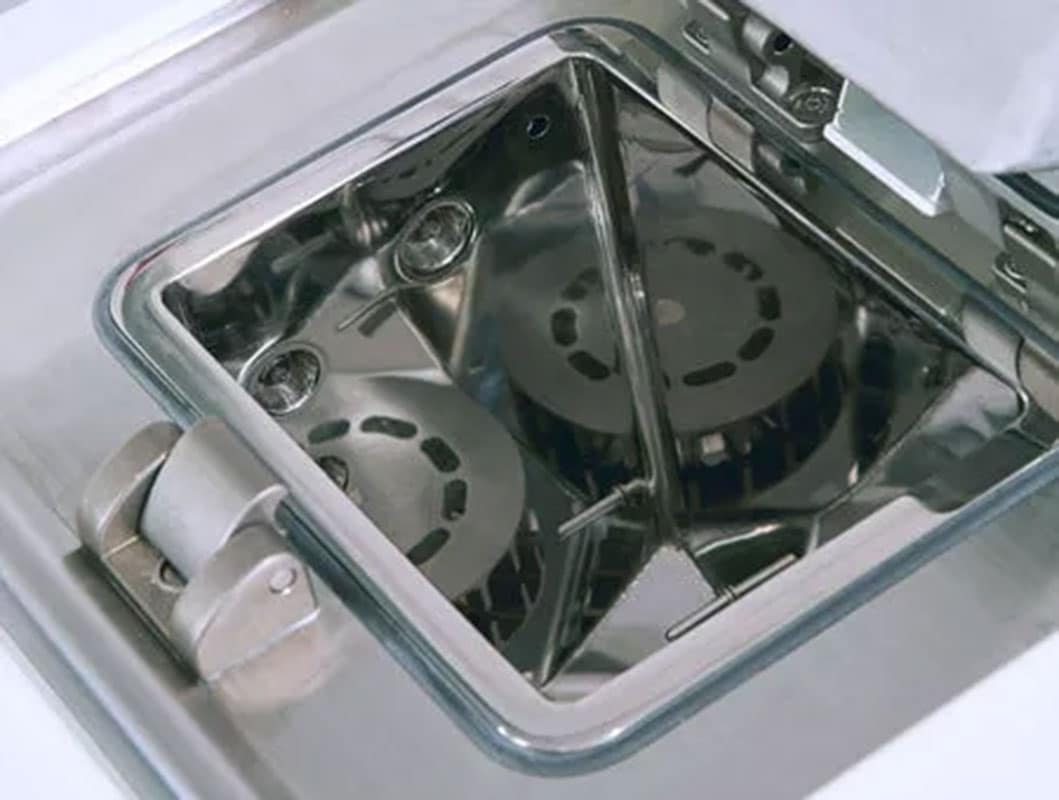

A magnetic impeller in each retort generates a reagent vortex to actively accelerate processing through rapid and even-heating, as well as active reagent distribution. THE ACTIVFLO SYSTEM provides ideal processing conditions for all tissues.

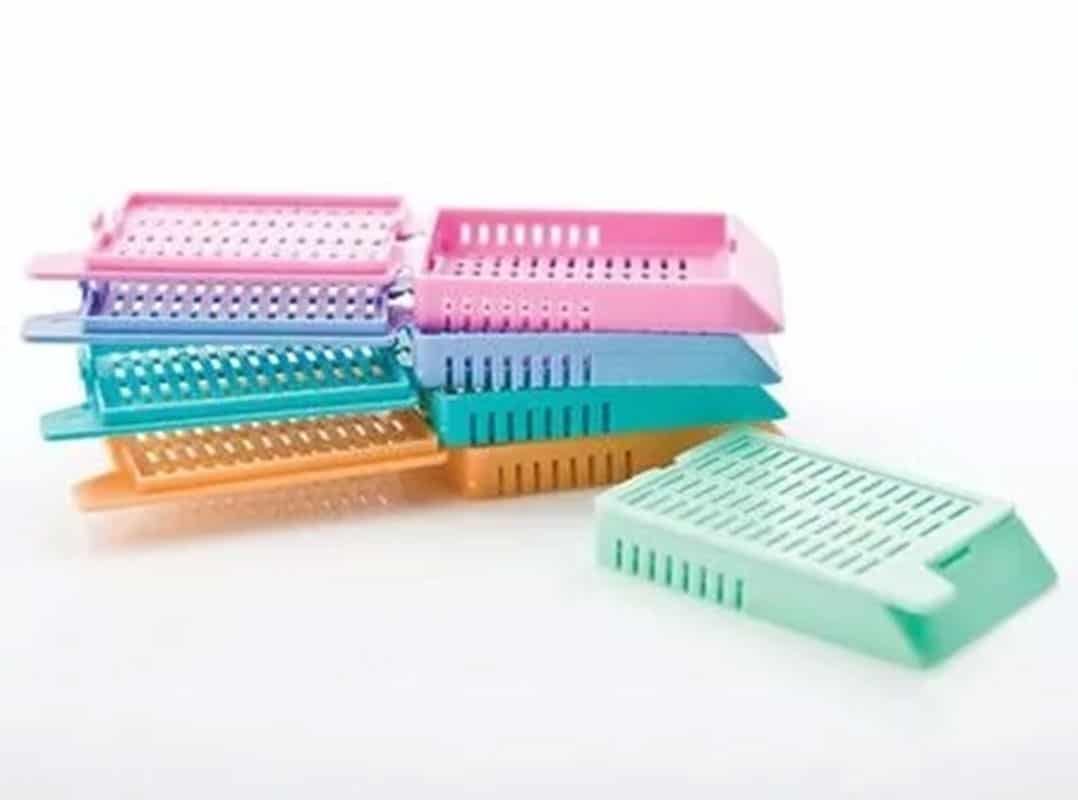

Maximize Your Processing with ActivFlo Cassettes

Maximize the effects of the ActivFlo system with validated ActivFlo cassettes. Compared to standard cassettes, ActivFlo cassettes drain up to 23% more efficiently than standard cassettes, resulting in a potential benefit for processing quality and efficiency, as well as reagent onboard longevity.

Foundation For Crisp Clear Stains

Histology workflows rely on efficiently fixed, processed and stained samples to enable reliable analysis. Optimal tissue processing conditions for each tissue type on the HistoCore PELORIS 3 lay the foundation for smooth downstream applications and the crisp, clear stains pathologists look for.

Confidence In Your Results

The HistoCore I-Scan technology captures each cassette individually, including cassette ID, quantity and color. Use the scanner as well to capture the basket ID, individual user ID’s, and reagent information.

Two built-in density meters monitor reagent changes and alert users if there’s an incorrect concentration to protect the integrity of the tissue.

The software provides you with added cybersecurity including Anti-Malware Protection with Windows® Defender and whitelisting detection.

Optimize Your Workflow with Leica Paraffin

Use Leica Paraffin with your HistoCore PELORIS 3 tissue processor to further improve your workflow. PELORIS Parablock paraffin melts 21% faster than pellets. Just load 5 blocks into the wax chamber and walk away. No need to top off paraffin.

Specifications:

• Dimensions (H x W x D): 1500 × 857 × 721 mmm (59 × 33.7 × 28.4 in)
• Weight (Dry): 331 kg (730 lb)
• Weight (Including Reagents): 430 kg (950 lb)
• Work Surface Height (from Floor): Front – 1070 mm (42.1 in)
• Rear: 1110 mm (43.7 in)
• Cassette Capacity (Standard Protocols): 600 (High-Capacity), 528 (High-Capacity w/ Dividers)
• Cassette Capacity (Xylene-Free Protocols): 432 (Spaced)
• Retort Vacuum (Max.): – 70 kPa (g)
• Retort Pressure (Max.): + 45 kPa (g)
• Retort Agitation: Magnetically Coupled Stirrer (User-Selectable Operation)
• Reagent Bottles: 16
• Reagent Volume: 3.8 L to Max. 5 L (1 US Gal to Max. 1.32 US Gal)
• Paraffin wax stations: 4 (each station is capable of filling one retort)
• Operating Voltage: 100 to 120 V~, 220 to 240 V~
• Operating Current (Max.): 15 A (100 to 120 V~), 10 A (220 to 240 V~)
• Mains Frequency: 50 to 60 Hz (100 to 120 V~), 50 Hz (220 to 240 V~)
• Power Consumption: 1450 W (100 to 120 V~), 2150 W (220 to 240 V~)
• Maximum Ambient Temperature: 35°C
• Minimum Ambient Temperature: 5°C
• Humidity (Non-Condensing): 10 to 80% RH
• Altitude: 0 to 2000 m above sea level
• Sound Pressure Level Output (at 1 m): < 65 dB
• Maximum Heating Energy Output: 1450 W (100 to 120 V~), 2150 W (220 to 240 V~)
• Storage Temperature: –40 to 76°C (–40 to 169°F)
• Storage Humidity (Non-Condensing): 10 to 95% RH
• Shipping Methods: Road and Air Freight Compatible
• Equivalent Altitude: < 4570 m Above Sea Level (i.e. the pressurization level of an aircraft)
• I-SCAN Dimensions: 174.5 x 64 x 38.8 mm, (6.9 x 2.5 x 1.5 in)
• I-SCAN Weight: 235 g (0.5 Ibs) approx
• Fill-in LED on/off button
• Scanning/Photographing trigger button
• Tick button

The HistoCore I-Scan scanner enables laboratories to scan 1D/2D barcodes and capture images via an integrated camera and barcode scanning engine. The scanner has an integrated TFT LCD to indicate device mode (scan/camera) and status. A USB cable connects the HistoCore I-Scan to the master instrument for power supply and data transfer. Three buttons on the device help control the scanner, the device mode is set by the master.
