SLEE MNT High-End Cryostat

Description

MNT High-End Cryostat

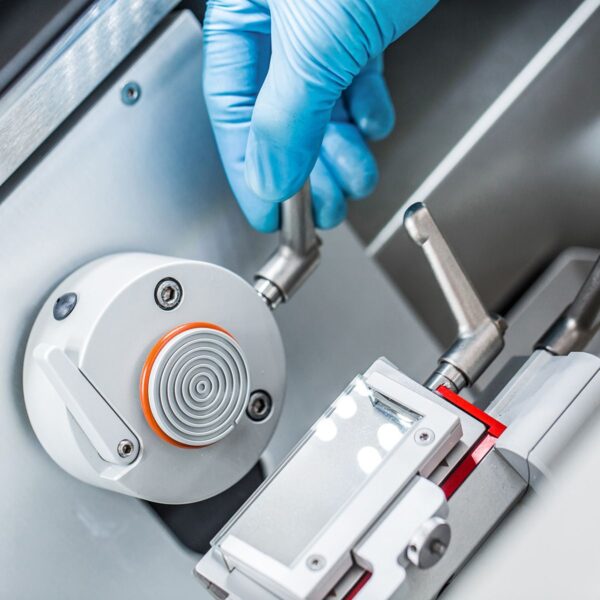

The MNT High-End Cryostat is designed for histopathology and research applications. The device is equipped with a fully automatic rotary microtome with extremely high mechanical stability and backlash-free roller guides. Furthermore, the device has a state-of-the-art control system.

Design & Manufacturing Made in Germany

Highlights

• Modern rotary microtome with highprecision automatic feed
• Integrated section counter
• Cutting motor with variable speed
• Large anti-roll plate

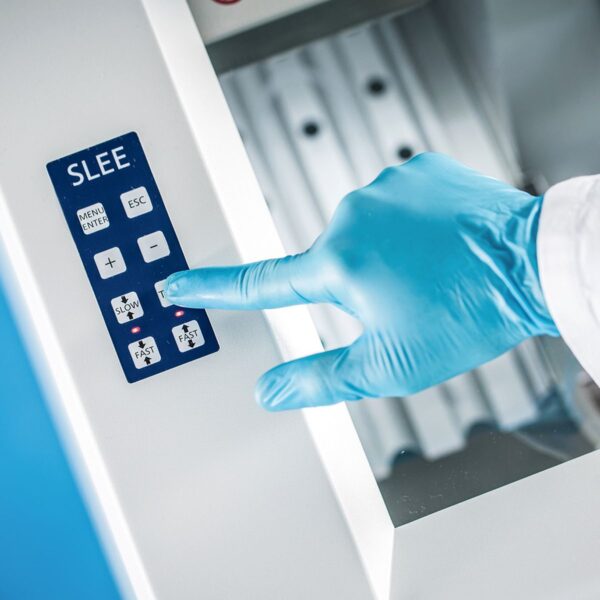

• Intuitive control
• Automatic defrost
• 24 freezing positions

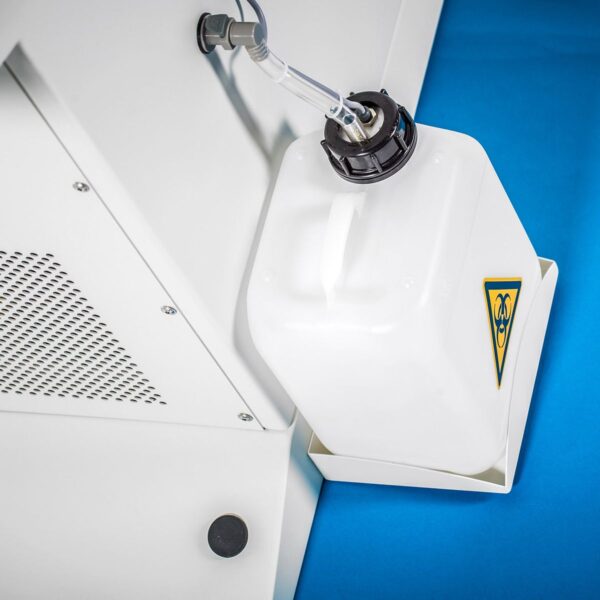

• Extraction system (optional)
• 2 quick freezing positions (optional)
• UV-C disinfection (optional)
• Object cooling (optional)

Standard Components

• Anti-Roll Plate
• Specimen Holders (5 x Ø 22 mm; 5 x Ø 35 mm)
• Section Counter
• Disposable Blade Holder (alternatively: standard knife holder)
• Heat Extractor (1 pcs.)
• Foot Switch for Motor Drive
• Rack for Specimen Holders (stainless steel)
• Disposable Blades (box with 50 pcs.)
• CryoGlue Embedding Medium (125 mL)
• Cryostat Low Temperature Oil (50 mL)
• Set of Allen Keys
• Clear-Cut Brush
• Mains Cable
• Manual

Options

• 2 Quick Freezing Positions
• UV-C Disinfection 230 V, 50/60 Hz
• UV-C Disinfection 115 V, 60 Hz
• Object Cooling 230 V, 50/60 Hz
• Object Cooling 115 V, 60 Hz
• Debris Extraction System 230 V, 50/60 Hz
• Debris Extraction System 115 V, 60 Hz

Optional Accessories

• Standard Knife Holder
• Specimen Holder (Ø 22 mm; 5 pcs.)
• Specimen Holder (Ø 28 mm; 5 pcs.)
• Specimen Holder (Ø 35 mm; 5 pcs.)
• Specimen Holder (Ø 50 mm; 5 pcs.)
• Rack for Specimen Holders (stainless steel)
• Cork Plates (Ø 20 mm; 100 pcs.)
• CryoGlue Embedding Medium (4 x 125 ml)
• Clear-Cut Brush
• Anti-Roll Plate (disposable blade holder, plastic)
• Anti-Roll Plate (standard knife holder, plastic)
• Steel Knife (16 cm-C-profile, 1 pcs.)
• Disposable Blades
• Ergosit Laboratory Chair

Specifications

• Brand: SLEE
• Type: MNT High-End Cryostat
• Cryochamber Temperature: 0°C down to -35°C
• Section Thickness Range: 0.5 to 100 μm
• Section Thickness Settings: 0.5 to 2 µm in 0.5-μm-steps, 2 to 20 µm in 1-μm-steps, 20 to 50 µm in 2-μm-steps, 50 to 100 µm in 5-μm-steps
• Trim Thickness Settings: 0.5 to 750 µm, 0.5 to 2 µm in 0.5-μm-steps, 2 to 20 µm in 1-μm-steps, 20 to 50 µm in 2-μm-steps, 50 to 150 µm in 5-μm-steps, 150 to 750 µm in 10-μm-steps
• Horizontal Advance: 28 mm
• Vertical Stroke: 58 mm
• Sectioning Speed: 20 to 300 mm/s, selectable
• Specimen Retraction: 0 to 200 µm, selectable
• Specimen Orientation: 8° (horizontal), 8° (vertical), 360° (z axis)
• Electrical Parameters: 115 V, 60 Hz | 230 V, 50/60 Hz
• Dimensions (W x D x H): 750 x 760 x 1.100 mm
• Weight (w/o Accessories): 154 kg
• Quantity: Each

If you are looking to buy a great quality cryostat, contact us today for a quote.
