SLEE Cromatec I Staining System

Description

Cromatec I Stainer with Highest Throughput

The Cromatec series represents maximum productivity and highest economy in routine histology and cytology. It combines consistent staining quality with extraordinary ease of operation of the device. A continuous loading of the baskets with up to 30 slides supports the user to fulfil the daily requirements and enables staining with highest throughput. The Cromatec slide baskets can be processed directly in all SLEE coverslippers. In case of using a different coverslipper, there are adapters available for using the baskets in the Cromatec product line.

The flexibility of the SLEE Cromatec Stainer is unique. This singularity is characterized by individually programmable time settings for each station and freely selectable positions for the washing cuvettes. The cleaning of the exhaust air is accomplished by the integrated carbon filter or by a connection to a central extraction system. The very quiet operating noise avoids any disturbance.

Due to the compact and space saving design, the stainer can be easily integrated into your laboratory. To safeguard the operation of the unit in case of power failures, every device is equipped as standard with an integrated uninterruptible power supply (UPS).

Design & Manufacturing Made in Germany

Highlights

• Highest throughput in routine, e.g. H&E staining
• Individual time settings, station for station, for maximum flexibility

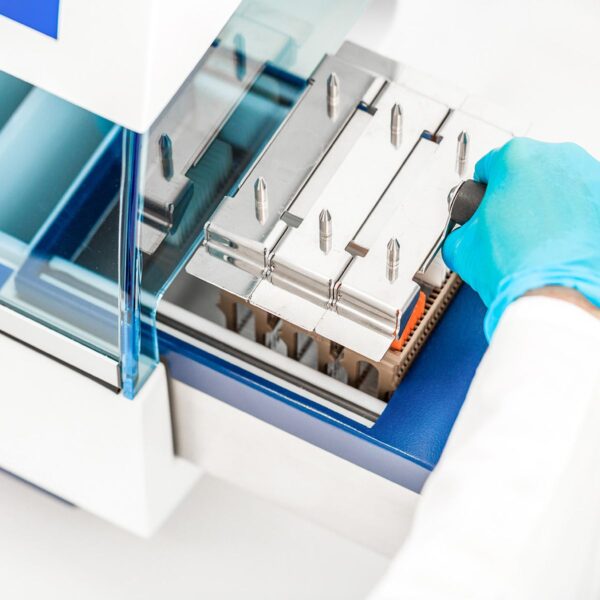

• Continuous loading with slide baskets
• Up to 6 washing cuvettes with controlled fresh water supply
• Reagent management system for maximum and consistent staining quality

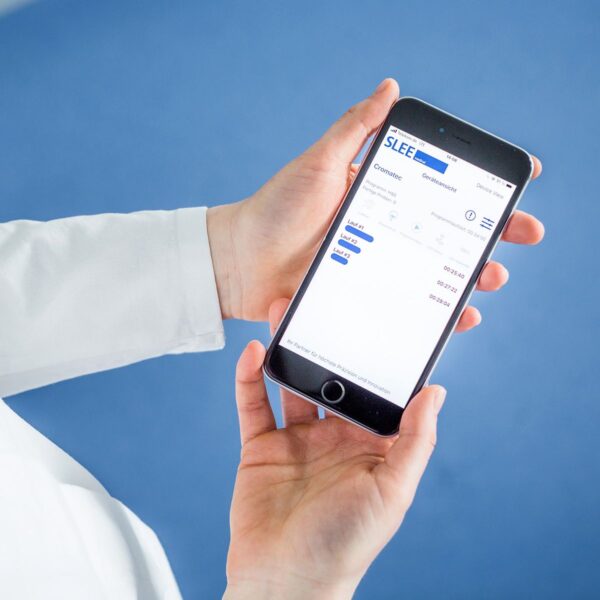

• Smart device connectivity for monitoring staining processes, apps for iOS and Android
• Very quiet operating noise
• Integrated exhaust cleaning with carbon filter

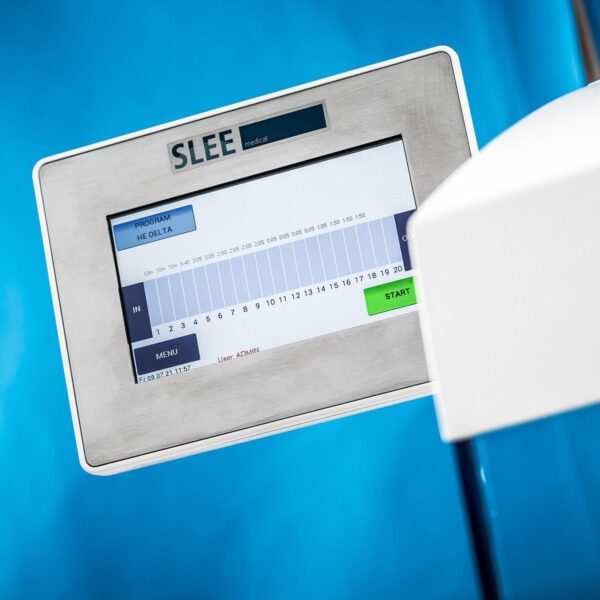

• Easy handling via 7″ touch display
• Integrated LED illumination of the working area
• Integrated uninterruptible power supply

Standard Components

• Staining Cuvettes (20 pcs.)
• Washing Cuvettes (6 pcs.)
• Basket Carrier (6 pcs.)
• Slide Baskets (6 pcs.)
• Transport Container with Lifter
• Xylene Container Insert with Cover for Unloading Station
• Supply and Drain Hose
• Mains Cable
• Manual

Optional Accessories

• Adapter Clip for SAKURA Basket (20 slides)
• Further Adapters on request

Specifications

• Brand: SLEE
• Type: Cromatec I Staining System
• Operating Temperature Range: +10 to +35°C
• Operating/Storage Humidity: max. rel. 80% non-condensing
• Storage Temperature Range: +5 to +55°C
• Specimen Slide Throughput: Up to 1800 slides/h (depending on staining protocol)
• Loading Capacity: Up to 20 slide racks simultaneously
• Slide Rack Capacity: 30 slides
• Total Number of Stations: 20
• Number of Washing Stations: Max. 6
• Reagent / Washing Cuvettes Volume: 400mL
• Water Flow Regulation for Washing Stations: 0.5 to 2.0 l/min
• Load / Unload Stations: 5 each
• Programs: 20 programs, up to 20 steps each
• Incubation Time Setting: 0 sec. up to 59 min., 59 sec.
• Dimensions (W x D x H): 1560 x 640 x 620 mm
• Weight (w/o Accessories): 110 kg
• Quantity: Each
